CV11 Thermal Controller
& Thermal Head
CV11 Thermal System for Semiconductor Testing
The CV11 thermal system is capable of supporting a wide range of device power requirements, depending on the thermal head configuration.
Above Zero Liquid Chiller
Coolant Medium:
Pressure:
​​
​
*System also works with other coolant fluids
*Water (5°C ~ 40°C)
3 bar +/- 5% regulated from 0 to operate flow rate (>11 lpm per thermal head)
CV11 Controller
Dimensions (LxWxH):
Electrical requirement:
Test Temperature:
Temperature Resolution
Thermal Control Capability:
Thermal Control Logic:
Control: Manual:
452 x 450 x 190mm
110/240 VAC 1600W
-20°C to +120°C
0.1°C
+/- 0.5°C @ Steady State
Dual Heating and Cooling PID
Manual; Modbus TCP; USB/Serial

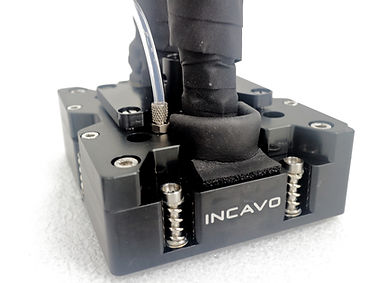

CV11 Thermal Head
Contact Plate Area:
58.0 x 58.0mm,
62.0 x 52.0mm,
64.0 x 46.0mm,
71.0 x 64.0mm,
72.0 x 56.0mm,
72.5 x 69.0mm,
Customized Contact Area Available
CV11 4-Channel Distributor
A single CV11 Chiller can simultaneously support up to four CV11 Controllers and CV11 Thermal Heads when used in conjunction with the 4-Channel Distributor.
